AC hydraulic pump for lifting table

AC hydraulic pump for lifting table discription

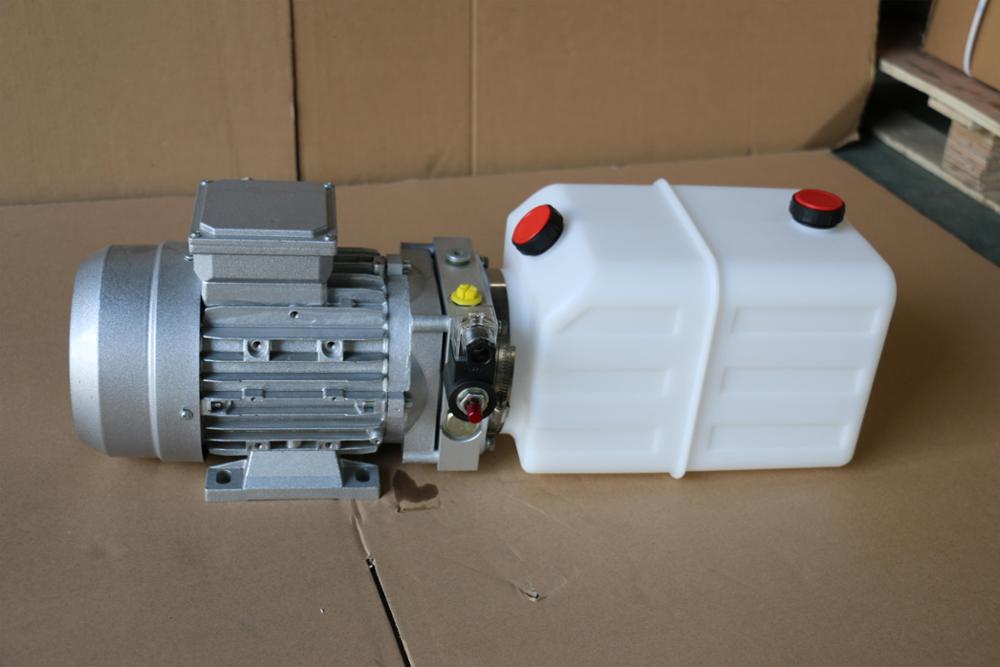

Hydraulic Power pack/ Hydraulic Power unit/Hydraulic system for lift platform/hoistable platform is designed for lift platform/hoistable platform,Equipped with a high pressure gear pump , a Ac Motor , a multi-functional manifold valves and a tank , ect . specially designed for lift table , with the function of power lift and gravity lowering the fixed compensated valve maintaining the lowering in steady speed.

Technical Parameter(NORMALLY)

	pump displacement	tank capacity	pressure	mounting	oil port	Length
220V 0.75KW 1440RPM 50HZ	1.6CC/R	4L	18MPA	HORIZONTAL	G1/4''	290
220V 1.5KW 2850RPM 50HZ	1.6CC/R	6L	20MPA	HORIZONTAL	3/8'' NPT	290
220V 1.5KW 2850RPM 50HZ	2.1CC/R	8L	16MPA	HORIZONTAL	3/8'' NPT	370
380V 2.2KW 2850RPM 50HZ	2.1CC/R	10L	20MPA	HORIZONTAL	3/8'' NPT	440
380V 2.2KW 2850RPM 50HZ	2.6CC/R	125L	16MPA	HORIZONTAL	1/4 BSPP	545

Other Main Products

WE ACCEPT CUSTOMIZED

Choose the oil circuit you want, and the parameter of the motor, pump , tank, pressure and oil port, below is how to choose the model NO:

MUCH MORE DETAILS

Package&Delivery

1. Each one packed in carton case, then put several carton case in the wooden case, supported by the tray.

2. Depends on the customers' requirements.

3.Shipped in 30 days after 30% deposit , the rest should be paid before delivery
