230W 3040 DIY CNC Router Engraver

  • 230W 3040 DIY CNC Router Engraver
  • 230W 3040 DIY CNC Router Engraver

230W 3040 DIY CNC Router Engraver

    Payment Type: T/T,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 1 Set/Sets
    Delivery Time: 10 Days
    Packaging: wooden case
    Productivity: 200000pcs/year
    Brand: QFXF
    Transportation: Ocean,Air
    Place of Origin: CHINA
    Supply Ability: 200000pcs/year
    Certificate: CE,ISO
    Port: Shenzhen,SHANGHAI

Basic Info

Model No.: CNC3040-DQ

Product Description


CNC USB 3040-DQ is suitable for Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes.
CNC USB 3040-DQ is a desktop CNC machine and designed for processing Industrial or Hobby Prototype Building, Building Model Making,PCB,Advertising Signs,Artwork,Crafts,Aircraft Models,
RC Model parts,etc.So,you can do engraving work at office or home.
Exquisite USB 3040-DQ is a miniature version of mobile long men structure of carving machine,put on you computer is like putting a printer or scanner that coordination,and can completely as
a compute peripherals tools,anywhere,anytime,help you to design intent fast real appear.Nonmetal materials on the milling,and it can also be used to carving simple PCB/CNC.


Factory Price Rauter Cnc Wood Cnc Router 2




3040T-DQ USB CNC router engraving machine is installed with 1204 ball screw,more steady and more precise.

Application

This USB 3040-DQ engraver is a user-friendly desktop engraving machine for those with limited space and /or a limited budget.
The Computerized CNC Engraving and Cutting Machine is suitable for various materials, such as WOOD, PMMA or other plastic,MDF board,native wood,PVC,Acrylic, wood,composite board plywood,
It can be used widely to process or make advertising signs, PCB, nameplates,badges,seals,bronzing plate, aluminium alloy,acrylates,ABS resin double color plate,PVC foaming board,indentation plates, signs,construction models,instrument panels,wooden products,etc.
If you want to make sure this laser engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and I will test it for you.


CNC3040TDQ





SAMPLE 2


Package Include:

  • 1 X Engraving machine
  • 1 X Control box

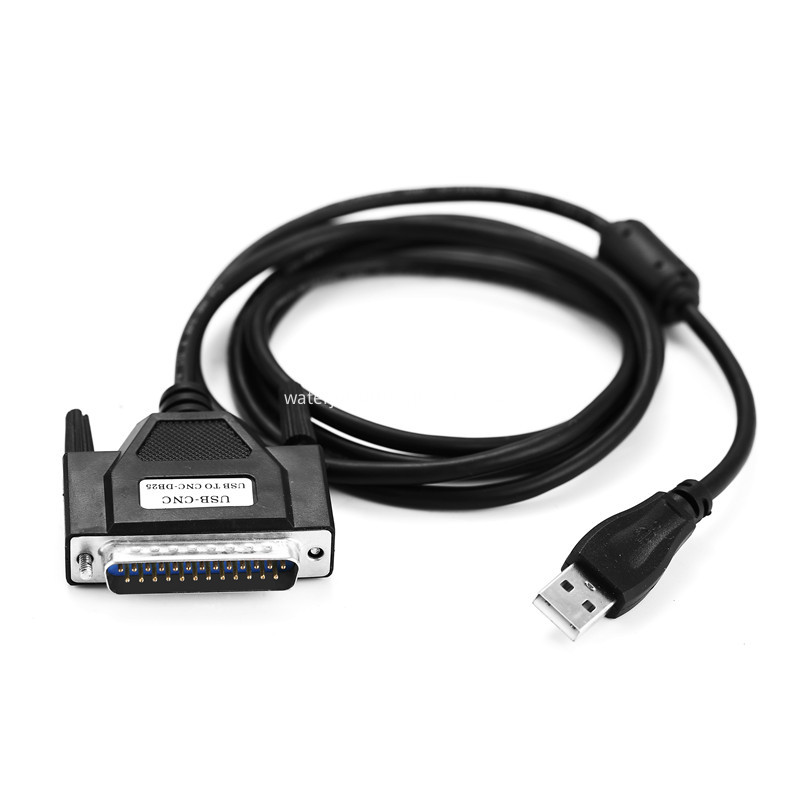

  • 1 X Parallel cable
  • 1 X Power cable(we also stock 110V or 220V power version and USA.UK.EU.AU.plugs for the country all over the world.)
  • 1 X Tool box and tools

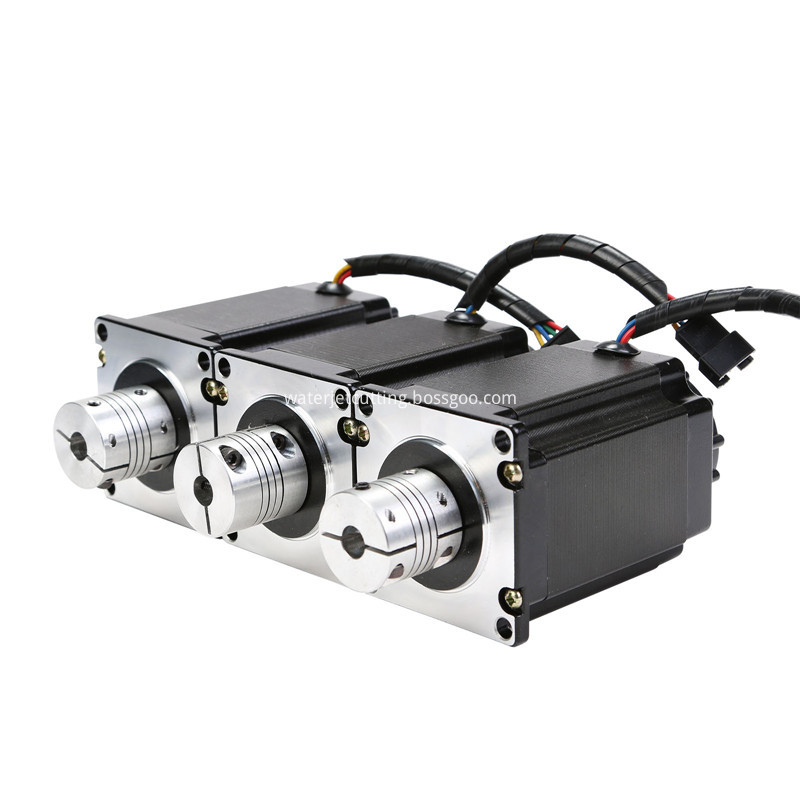

  • 3 X Axis motors
  • 1 X English manual



  • Simple operation and installation
  • With USB function
  • More steady and strong equiped with aluminum alloy frame materials
  • Can be controlled only by desktop computer,not suitable for laptop
  • Mach 3 software is simple and intelligent
  • Can control the engraving more precise
  • Emergency stop button enhance security
  • with more precise 1204 ballscrew on all X.Y.Z axis, only 4mm screw pitch
  • with automatic tool setting function of Z axis
  • more powerful brand new DC spindle motor and controller box
  • Large 3D engraving in soft wood,MDF board,native wood,PVC,Acrylic we suggest use one or two spiral flute ball bits.
  • Can engraving much more materials by spiral flute bits,such as metal,steel,MDF board,solid wood,composite board plywood,stone.
  • Spindle motor knob is useful for small positioning adjustment ,with steady and strong support structure.
  • Cover plates reducing pollution for the screws and shafts.
  • The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.
  • The chrome shafts is not easy to deform,suitable for long time use.
  • Flexible coupling can be used for high torque transmission.
  • High Precision Stepping motor makes engraving more precise .
  • 2 years Free warranty

3040-DQ triaxial engraving machine part parameters:

  • Effective working travel:390(X)mm x 285(Y)mm x 55(Z)mm
  • Shape dimension:610x485x395mm
  • Max.workpiece dimension:≤70mm
  • Engraving area:390mm x 285mm
  • Z-Axis stroke:55mm,Engraving depth depends on the length of the tool edge
  • Frame materials:aluminum alloy 6063 and 6061(The unique and dedicated mold extrusion profiles,Let counterfeiters dwarfs)
  • Type of screw:Ball screw,Pitch 4mm
  • Rail type:Chromeplate shaft+Liner Bearing,( 57049055,Surface hardening 61 HRC)
  • Driving units X axis:1204 ball screws
  • Driving units Y axis:1204 ball screws
  • Driving units Z axis:1204 ball screws
  • Sliding units X axis:Dia.16mm chrome plate shafts
  • Sliding units Y axis:Dia.16mm chrome plate shafts
  • Sliding units Z axis:Dia.12mm chrome plate shafts
  • Stepping motor type:2-phase hydird stepping motor,1.8A/PHASE,60N.8 segments drive

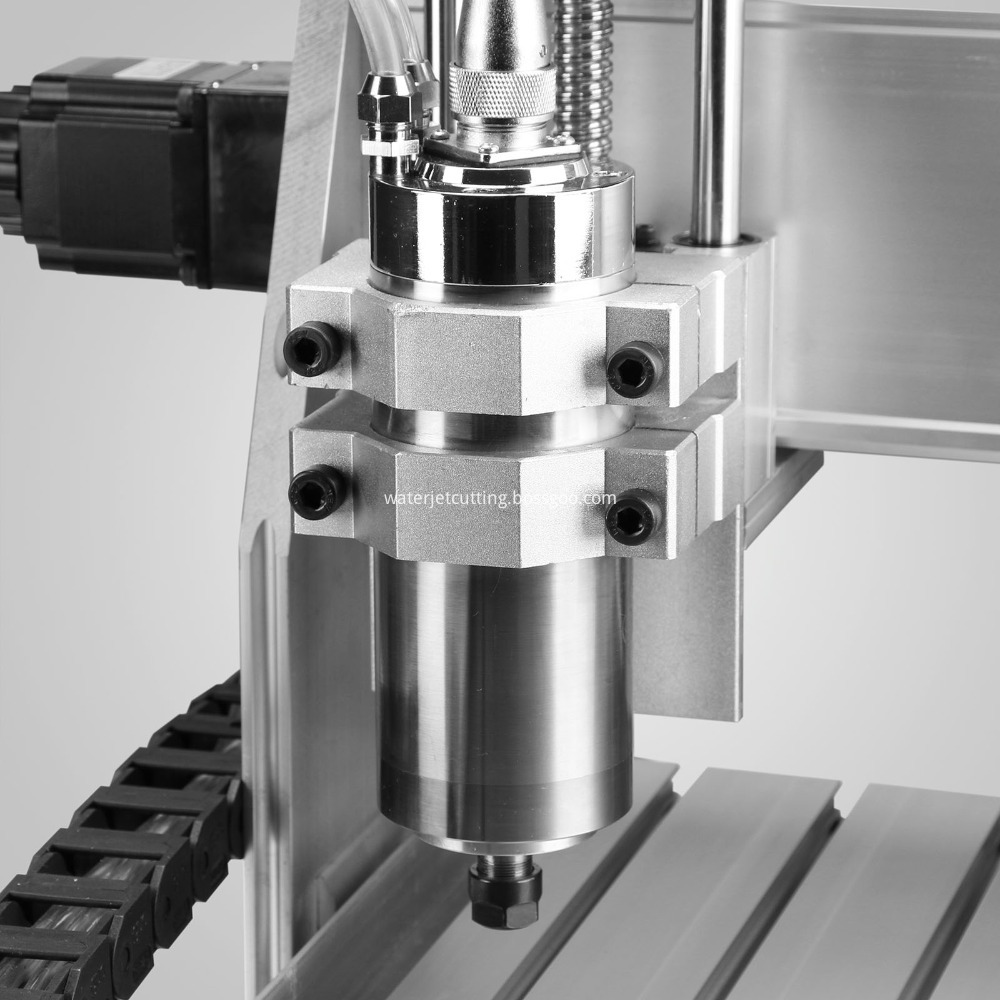

  • Spindle motor:New DC spindle motor,50v / 230w,11000r/min
  • (It is very litter noise,the use of low cost,high precision)
  • Principal axis collet ER11,1/8'(3.175mm) Collet
  • Repeat accuracy:0.05mm
  • Spindle precision:radial beat acuities 0.03 mm
  • Control unit:triaxial one-piece drive + ring variable power + PWM speed
  • Carving Instructions:G code/.nc/.ncc/.tab/.txt
  • Communication interface:through parallel or USB connection with computer
  • Software compatibility:all
  • Maximum speed:0-4000mm/min(Engraving speed:300-3000mm/min)
  • Machine weight:28KG

Control box parameters:

  • Operating Voltage:AC110V or AC220V(we also stock USA.UK.EU.AU.plugs and 110V or 220V power version for the country all over the world.)
  • Control unit:Toroidal transformer + PWM power supply module + TB6560 3axis drive board
  • Computer connection:on board parallel port,USB
  • Command code:G code
  • Acceptable software:only CNCUSB
  • Protection:Emergency stop button
