Made in China Electric Brushless Motor Controller Driver for Medical Equipment
Product Description
Normal Brushless Motor Controller (BLMD-05)
1: Electric parameter
2: Describe for the function and performance
This three phases brushless motor controller is designed with 120 degree of electric angle, when connect with this kind of brushless motor, it has some functions and performances as following:
2.1 Motor running and stop control ( EN )
You can control the brushless motor to run or stop by controlling the terminal "EN" and "GND" connecting. The motor will running when we connect the terminal "EN" to "GND"; when shut down, the motor will stop, and the stopping time will decided by the motor inertia and load add on the motor.
2.2 Motor rotation direction control ( F/R )
You can control the motor rotation direction by controlling the terminal "F/R" and "GND" connection When connect terminal "F/R" to terminal "GND", the motor will run at CCW (view from motor output side), and when shut down, the motor will run at another direction.Attention: If you need to change the motor rotation direction, please stop the motor at firstly, otherwise the controller shall be caused to damage.
2.3 Speed control ( SV )
You can control the motor running speed by controlling terminal "SV". When connect the terminal "SV" to terminal "+5V" , motor will run at maximum speed, and when "SV" connect to "GND", the motor running speed will be zero. You can adjust the motor speed from 0~maximun by a potentiometer, please refer to the diagram as follow:
2.4 Performance
Please refer to the diagram as follow:
3. Connection of the driver:
4: Describe for the connecting line & Mechanical dimension
1: Electric parameter
| 1 | Rated Voltage | DC24V |
| 2 | Rated Power | 80 watts |
| 3 | Lower Voltage protection | 8±0.5V |
| 4 | Lower current protection | 4±0.5A |
| 5 | Loss power | 2 watts max |
| 6 | Dimension | 86x55x20mm |
| 7 | Working temperature & Humidity | -30ºC~85ºC, 95% RH max |
| 8 | Storage temperature & humidity | -30ºC~85ºC, 95% RH max |
| 9 | Atmosphere pressure | 86kPa ~ 106kPa |
| 10 | Insulation resistance | 100M ohm min |
2: Describe for the function and performance
This three phases brushless motor controller is designed with 120 degree of electric angle, when connect with this kind of brushless motor, it has some functions and performances as following:
2.1 Motor running and stop control ( EN )
You can control the brushless motor to run or stop by controlling the terminal "EN" and "GND" connecting. The motor will running when we connect the terminal "EN" to "GND"; when shut down, the motor will stop, and the stopping time will decided by the motor inertia and load add on the motor.
2.2 Motor rotation direction control ( F/R )
You can control the motor rotation direction by controlling the terminal "F/R" and "GND" connection When connect terminal "F/R" to terminal "GND", the motor will run at CCW (view from motor output side), and when shut down, the motor will run at another direction.Attention: If you need to change the motor rotation direction, please stop the motor at firstly, otherwise the controller shall be caused to damage.
2.3 Speed control ( SV )
You can control the motor running speed by controlling terminal "SV". When connect the terminal "SV" to terminal "+5V" , motor will run at maximum speed, and when "SV" connect to "GND", the motor running speed will be zero. You can adjust the motor speed from 0~maximun by a potentiometer, please refer to the diagram as follow:
2.4 Performance
| 1 | Static Loss | The static loss not exceed 2% of the rated power |
| 2 | Load ability | 150% of the rated power at least |
| 3 | Speed adjust function | The adjust voltage range is 0~+5V on the SV terminal |
| 4 | Low voltage protection | It shall shut down the motor supply power when voltage is lower than 8V/DC |
| 5 | High current protection | Controller shall can limit the current when it exceed the rated value |
| 6 | Insulation resistance | At the normal temperature condition, the insulation resistance shall be 100M ohm min, testing between the electric part and the casing |
| 7 | Temperature rising | 60ºC max, running at the rated power |
| 8 | High temperature | Condition: storage with 45ºC±2ºC, 3 hours |
| A. the controller should be working well | ||
| B. the insulation resistance should be 2M ohm min | ||
| 9 | Hi-pot | DC500V, 5mA, 1minute, testing between the electric part and the casing |

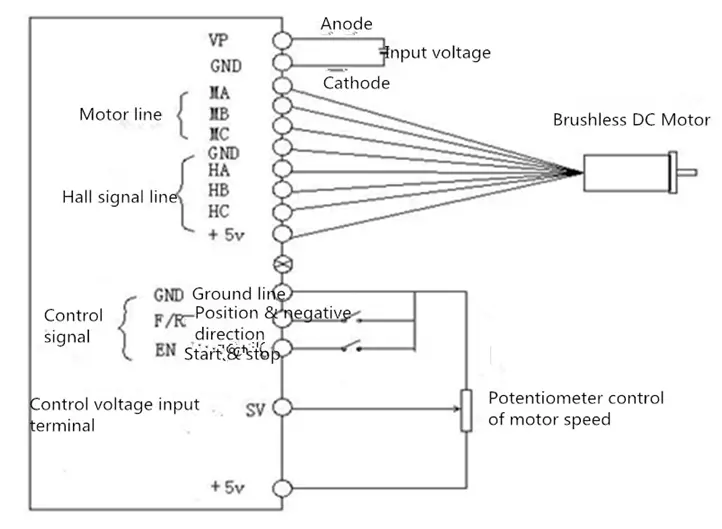

3. Connection of the driver:
4: Describe for the connecting line & Mechanical dimension

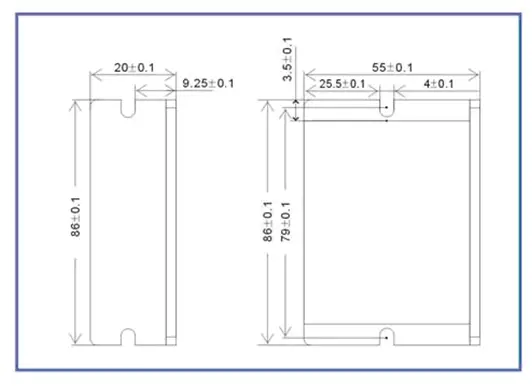

Dimension diagram (Unit: mm)
Products Show
Corner of our Factory
Note: If you have some different specifications, we can product Stepper Motor as your special requirements
Products Show
Corner of our Factory
Note: If you have some different specifications, we can product Stepper Motor as your special requirements
