130 Brushless Motor for High Power Textile Machinery
Product Description
130 Brushless Motor for High Power Textile Machinery
| Model:FXD1360BLS67-216TF-001A | General Info | |
| A B C D E | Widing type | Star/Delta |
| Note:A Fuxianda | Hall effect angle | 120 degree electric angle |
| B Motor dia or square size | Shaft runout | 0.025mm |
| C Brushless DC Motor | Radial play | 0.06mm/50g |
| D Rated voltage | End play | 0.08mm/50g |
| E Rated power | Max radial force | 28/N20mm from the flange |
| Max axial force | 10N |
Motor specification
|

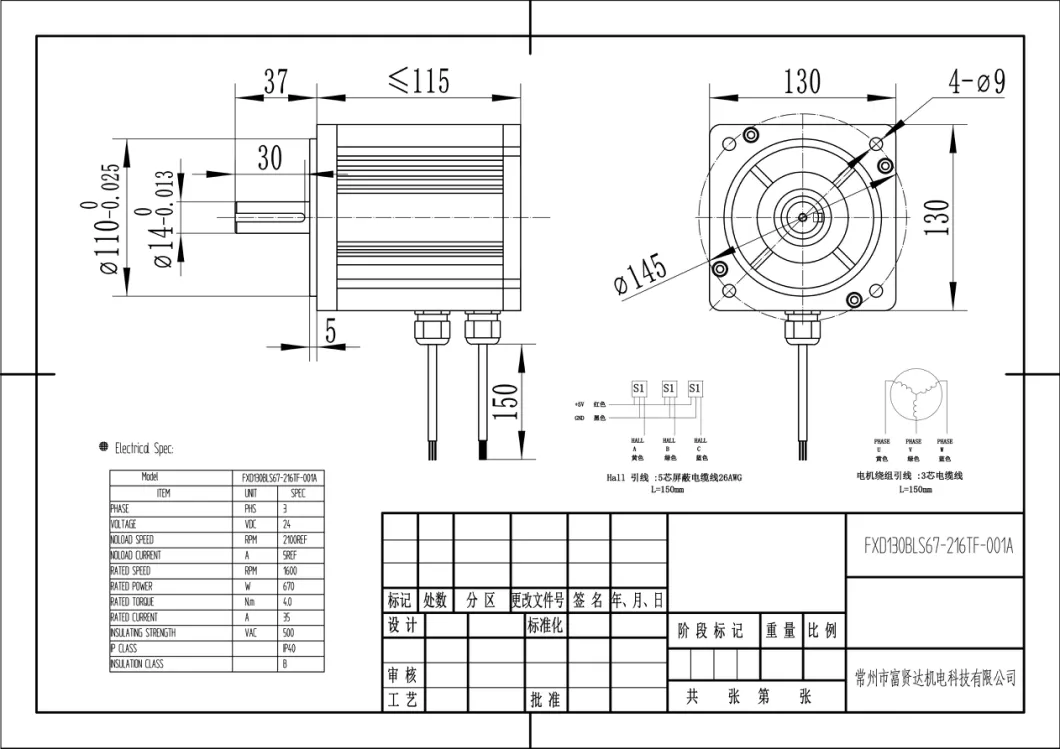

Dimension:
Payments:
(1) We can accept EXW, FOB
(2) Payment must be made before shipment.
(3) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.
Shipping:
(1) We only ship to your confirmed address. Please make sure your shipping address is correct before purchase.
(2) The orders will be shipped out within 30 working days upon payment confirmation.
(3) Please check the package upon receipt, if there are some damages, please contact us immediately.
Certification
IOS9001,CE,EMS ,RoHS,SGS
Applications:
The bldc motor manufactured by us has wide range of application like robots, electronic automatic equipment, medical instrument, advertisementing instrument, lighting& audio equipment, printer, textile machinery, CNC router etc.
Note:If you have some different specifications, we can product Stepper Motor as your special requirements.
Web:Http://fxdmotor.En.Made-in-china.Com/ Phone:+86 0519 83666368
Http:// Mob:15295151006
Why choose us?
1.Environmental friendly
2.In time delivery
3.Negotiable and competitive price
4.CE, ROHS, SGS certification
5.In time after-sale service
6.2-year guarantee period
7.Custom products
