High Quality Waterproof Motor, BLDC Waterproof Motor, DC Engine Waterproof Motor Suppliers in China

Home > Products > Brushless DC Motor > 60 Brushless DC Motor 24V 3000 Rpm Sealant Waterproof Motor

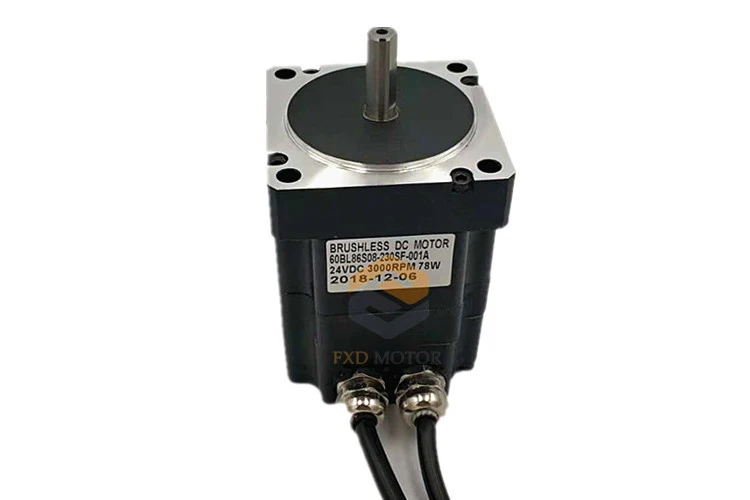

60 Brushless DC Motor 24V 3000 Rpm Sealant Waterproof Motor

Product Description




60 Brushless DC Motor 24v 3000 turn seal glue waterproof motor two types

Model:FXD60BL86S08-230SF-001AGeneral Info
A     B       C      D      EWiding typeStar/Delta
Note:A   FuxiandaHall effect angle120 degree electric angle
B   Motor dia or square sizeShaft runout0.025mm
C   Brushless DC MotorRadial play0.06mm/50g
D   Rated voltageEnd play0.08mm/50g
E   Rated powerMax radial force28/N20mm from the flange
 Max axial force10N
60 Brushless DC Motor 24V 3000 Rpm Sealant Waterproof Motor

Motor specification
ModelNo.Of PhaseRated VoltageRated SpeedRated TorqueRated PowerMassBody length
  VDCRpmN.MWKgMm
FXD60BL86S08-230SF-001A32430000.2578186
FXD60BL106S15-230SF-001A32430000.251501.2106
60 Brushless DC Motor 24V 3000 Rpm Sealant Waterproof Motor

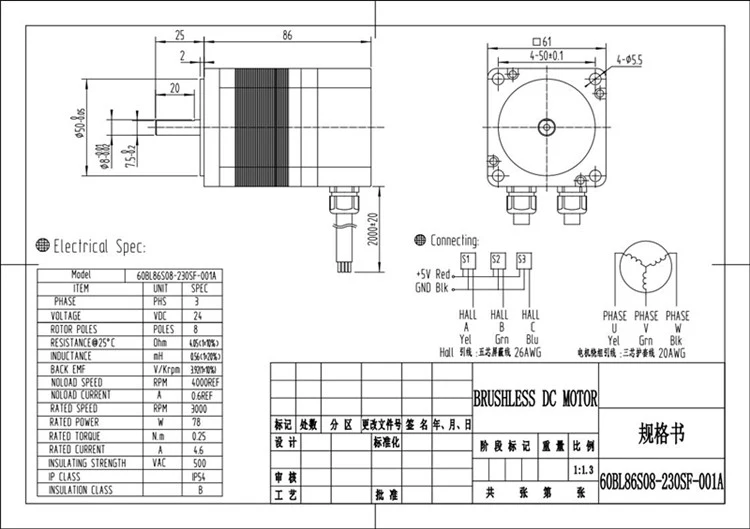

Dimension:
60 Brushless DC Motor 24V 3000 Rpm Sealant Waterproof Motor


60 Brushless DC Motor 24V 3000 Rpm Sealant Waterproof Motor
Payments:
(1) We can accept EXW, FOB
(2) Payment must be made before shipment.
(3) Import duties, taxes and charges are not included in the item price or shipping charges.       These charges are the buyer's responsibility.


Shipping:
(1) We only ship to your confirmed address. Please make sure your shipping address is correct before purchase.
(2) The orders will be shipped out within 30 working days upon payment confirmation.
(3) Please  check the package upon receipt, if there are some damages, please contact us immediately.


Certification
IOS9001,CE,EMS ,RoHS,SGS

60 Brushless DC Motor 24V 3000 Rpm Sealant Waterproof Motor

Applications:
The bldc  motor manufactured by us has wide range of application like robots, electronic automatic equipment, medical instrument, advertisementing instrument, lighting& audio equipment, printer, textile machinery, CNC router etc.
Note:If you have some different specifications, we can product Stepper Motor as your special requirements.
Web:Http://fxdmotor.En.Made-in-china.Com/                   Phone:+86 0519 83666368
Http://                                        Mob:15295151006


Why choose us?
1.Environmental friendly
2.In time delivery
3.Negotiable and competitive price
4.CE, ROHS, SGS certification
5.In time after-sale service
6.2-year guarantee period
7.Custom products



Contact us if you need more details on Waterproof Motor. We are ready to answer your questions on packaging, logistics, certification or any other aspects about BLDC Waterproof Motor、DC Engine Waterproof Motor. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Brushless DC Motor
