60 Brushless DC Motor with Worm Gear Worm Reducer 2n. M Brake
Product Description
60 Brushless DC Motor 24V to 150W&200W Worm Gear Worm Reducer 2N.m Brak
Product descripion
1.Nema 60 Brushless DC Gear Motor2.Model Number: FXD60BL100S15-230TF-G60-001A
3.Phase: 3 Phase
4.Lead Wire(No.): 8 wires
5.Shape: Rounded
6.Motor OD: 60mm(2.5inch)
7.Speed:0-3000rpm adjusted
8.Applications: Use for Robots bldc motor, electronic automatic equipment bldc motor, medical instrument BLDC motor, advertisementing instrument bldc motor, audio equipment bldc motor, advertising lamp box. Cnc brushless DC Motor.
Gemeral info.
| Model No: FXD60BL100S15-230TF-G60-001A | Type: Brushless Dc Motor |
| Widing type: Star/Delta | Hall Effect angle: 120 degree electric angle |
| Nuber of the phase: 3-Phase | Shaft runout: 0.025mm |
| Insulation class: Class B | Ip class: Ip40 |
| Dielectric Strength: 500VDC for one minite | Insulation resistance: 100MΩmin 500VDC |
Electric Connection
| Lead No. | Lead Color | Lead Gauge | Function | Description |
| 1 | Red | UL3266/26AWG | VCC | SUPPLY VOLTAGE FOR HALL SENSORS |
| 2 | Black | GND | GROUND FOR HALL SENSORS | |
| 3 | Yellow | HALL A | SINGLE OF HALL A | |
| 4 | Green | HALL B | SINGLE OF HALL B | |
| 5 | Blue | HALL C | SINGLE OF HALL C | |
| 1 | Yellow | UL3266/20AWG | PHASE U | MOTOR PHASE U |
| 2 | Green | PHASE V | MOTOR PHASE V | |
| 3 | Blue | PHASE W | MOTOR PHASE W |

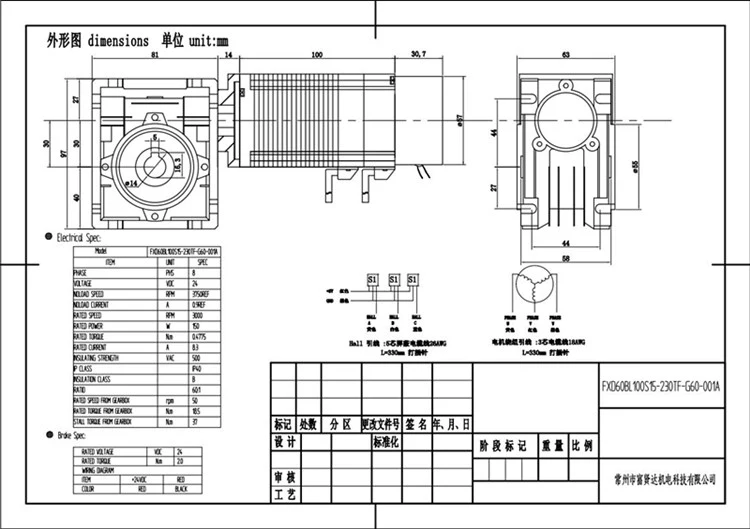

Dimensions diagram
Electrical specification
Work shop
Payments:
(1) We can accept EXW, FOB
(2) Payment must be made before shipment.
(3) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.
Shipping:
(1) We only ship to your confirmed address. Please make sure your shipping address is correct before purchase.
(2) The orders will be shipped out within 30 working days upon payment confirmation.
(3) Please check the package upon receipt, if there are some damages, please contact us immediately.
Certification
IOS9001,CE,EMS ,RoHS,SGS
Applications:
The bldc motor manufactured by us has wide range of application like robots, electronic automatic equipment, medical instrument, advertisementing instrument, lighting& audio equipment, printer, textile machinery, CNC router etc.
Note:If you have some different specifications, we can product Stepper Motor as your special requirements.
Web:Http://fxdmotor.En.Made-in-china.Com/ Phone:+86 0519 83666368
Http:// Mob:15295151006
Why choose us?
1.Environmental friendly
2.In time delivery
3.Negotiable and competitive price
4.CE, ROHS, SGS certification
5.In time after-sale service
6.2-year guarantee period
7.Custom products
| Model | voltage | Rated speed | Rated torque | Rated power | Ratio | speed from gear | torque from gear | stall torque | Mass | Body length |
| VDC | rpm | N.m | w | rpm | N.m | N.m | g | mm | ||
| FXD60BL100S15-230TF-G60-001A | 24 | 3000 | 0.475 | 150 | 20:1 | 137 | 1.92 | 4.0 | 1500 | 100 |
Work shop
Payments:
(1) We can accept EXW, FOB
(2) Payment must be made before shipment.
(3) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.
Shipping:
(1) We only ship to your confirmed address. Please make sure your shipping address is correct before purchase.
(2) The orders will be shipped out within 30 working days upon payment confirmation.
(3) Please check the package upon receipt, if there are some damages, please contact us immediately.
Certification
IOS9001,CE,EMS ,RoHS,SGS
Applications:
The bldc motor manufactured by us has wide range of application like robots, electronic automatic equipment, medical instrument, advertisementing instrument, lighting& audio equipment, printer, textile machinery, CNC router etc.
Note:If you have some different specifications, we can product Stepper Motor as your special requirements.
Web:Http://fxdmotor.En.Made-in-china.Com/ Phone:+86 0519 83666368
Http:// Mob:15295151006
Why choose us?
1.Environmental friendly
2.In time delivery
3.Negotiable and competitive price
4.CE, ROHS, SGS certification
5.In time after-sale service
6.2-year guarantee period
7.Custom products
